Extension Licenses
Solar-Log™ opening licenses for the extension of the plant size

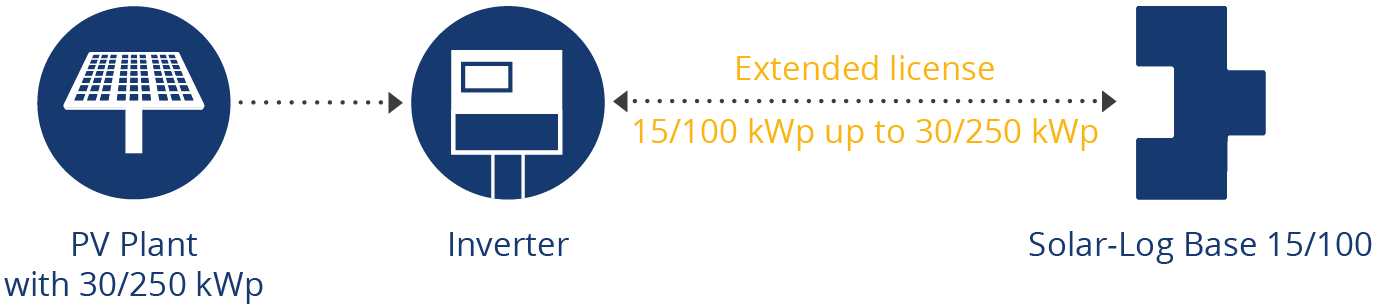

Solar-Log™ Base 15 to 30 kWp & Solar-Log™ Base 100 to 250 kWp.
To the webshop licenses.
Alongside the Solar-Log™ Base and expansion modules, our flexible licenses are an integral part of our modular system. Depending on your individual requirements, you can unlock additional functions on your Solar-Log™. This allows you to operate your PV system even more efficiently and reliably meet statutory requirements for direct marketing or feed-in management. Best of all: you only invest in the functions your project actually needs.
From Firmware 4.0 onwards, all Solar-Log™ software licenses are conveniently available via our webshop – fast, straightforward, and ready for immediate use. Licenses are device-bound and non-transferable. Practical for initial commissioning: if a license is activated directly during installation, a 30-day trial period starts automatically. This allows you to purchase the license conveniently afterwards – making flexible on-site installation and commissioning significantly easier.
Solar-Log™ Base 15 to 30 kWp & Solar-Log™ Base 100 to 250 kWp.
To the webshop licenses.
The solution for simple and efficient communication between the direct marketer and the remotely controllable photovoltaic system: the Solar-Log™ Base devices can receive the reduction commands of the direct marketer via this interface and report back the current power. This means that all the prerequisites for the management bonus are met in Germany. For data transmission between the generation plant and the direct marketer, a VPN router is no longer required with the Solar-Log™ Base devices.
To the webshop licenses.
With the Solar-Log™ PM Pro Licence, the diverse requirements of energy companies for a plant control system can be easily met. The license includes among others: various control modes, a change of control modes remotely, fallback functions for the failure of connected devices, an active watchdog functionality, and the possibility to generate feedback channels from the plant.
To the webshop licenses.
The Solar-Log™ integrated control license enables a flexible structure of your PV plant. Several direct marketers in one plant can be mapped. Even plants with distant feed-in or measurement points can be implemented with the help of several Solar-Logs and the associated group control licenses.
To the webshop licenses.

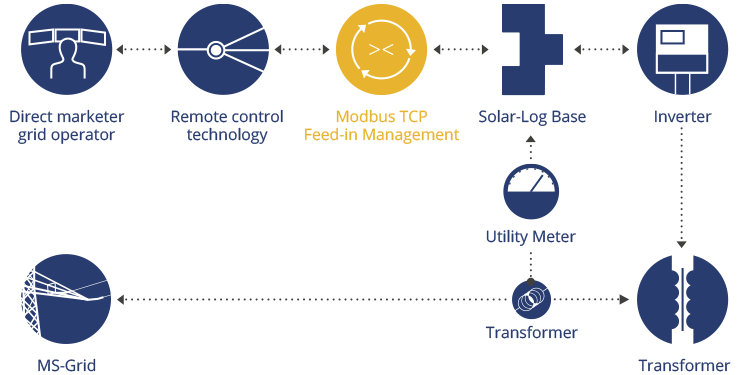

For some grid operators, the telecontrol technology is coupled to the Solar-Log™ Base via the Modbus TCP power management interface. The reception of active power commands as well as the feedback of various measured values take place via this digital interface. If a Utility Meter is required for control, a Solar-Log™ Base must be used.
To the webshop licenses.
We offer a planning and configuration service for the VDE 4110-compliant connection of PV systems to the medium-voltage grid. As part of this configuration, the individual active and reactive power control functions are checked and tested. These tests are technically complex and time-consuming. To minimise this effort, we offer you our Solar-Log™ PM Pro Analyzer.
The PM Pro Analyzer helps to automatically test all certification-relevant functions and document the results. It defines which tests are to be carried out - the test tool checks the test conditions and carries out the tests automatically. The process can be monitored via a progress bar.
To the webshop licenses.

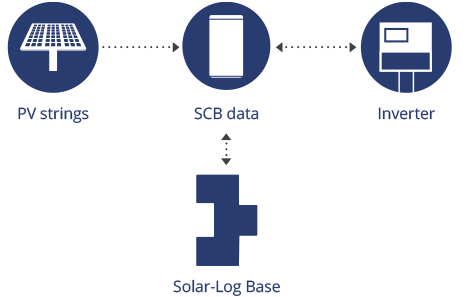

The software license activates the data recording of different SCB in the Solar-Log™ Base 100 and Solar-Log™ Base 2000, as well as the visualization and monitoring of the individual string values in the Solar-Log WEB Enerest™ Portal.
The technical data for the supported SCBs can be taken from the component database.
To the webshop licenses.

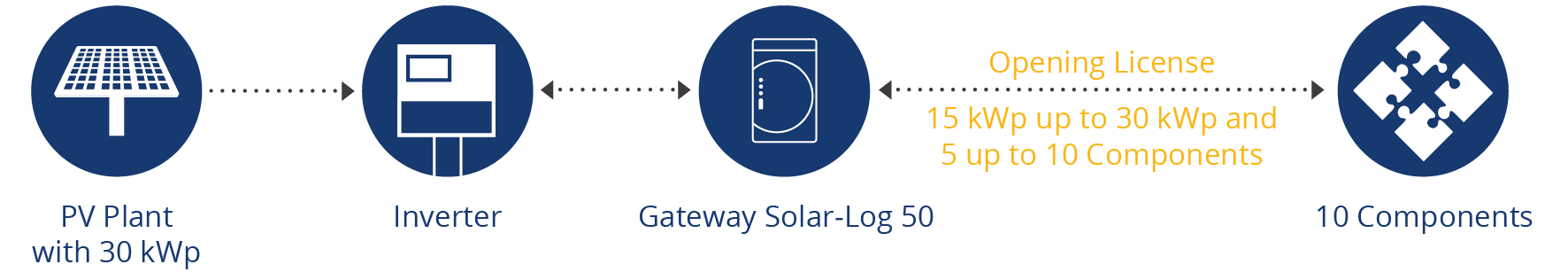

The basic version of the Gateway Solar-Log™ 50 can additionally be extended individually by purchasing software licenses.
The prerequisite for this is an existing connection between the Solar-Log™ 50 gateway and the Internet.
To the webshop licenses.
The FTP/FTPS transfer license extends the possibilities for data export to external portals.
With this license, the Solar-Log™ 300, 1200, 1900, 2000 and the Solar-Log™ Base devices can transfer the data several times, cyclically.
